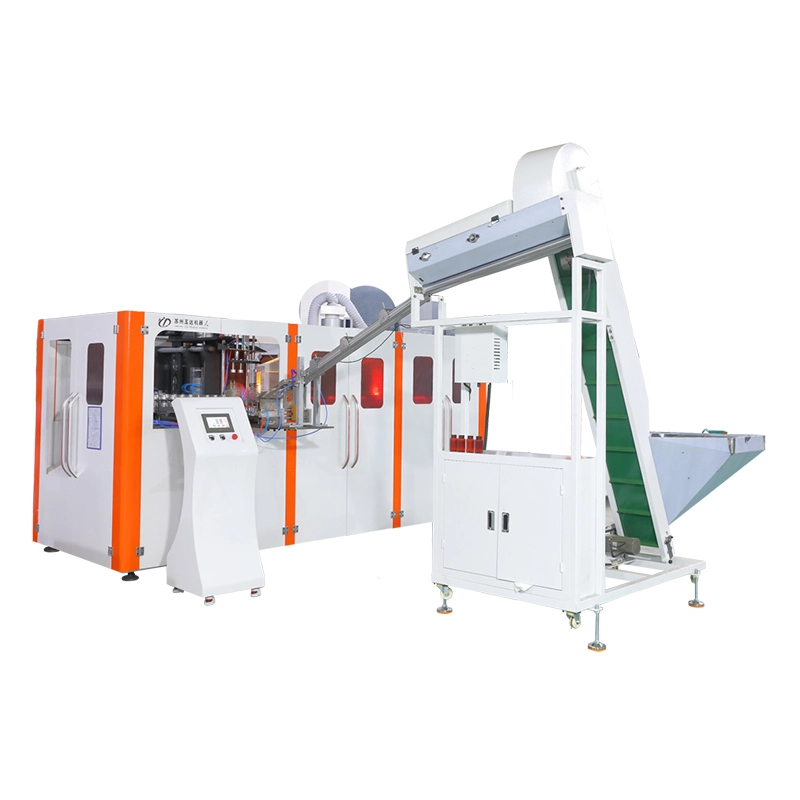

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production 1

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production 2

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production 3

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production 4

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production 5

PET Bottle Blowing Machine: Efficient & Versatile Bottle Production

Our PET Bottle Blowing Machine is designed to transform PET preforms into strong, clear, and ready-to-use bottles with high efficiency and reliability. It is the perfect production solution for small to medium-sized businesses and for filling lines that require flexible output. The machine is built to deliver consistent quality for a wide range of bottle sizes, making it an excellent investment for your packaging operations.

Key Features and Benefits:
● Servo Motor Energy Saving
● Wide Production Range
● Optimized for Medium Output
● Excellent Bottle Quality
● Quick Mold Changeover

Inquiry

Write a Review

Technical Parameters

Table 1

Table 2

Table 3

Technical Parameters		YDBA-A20L-1	YDBA-A20L-2
Host Machine Parameter	Cavity pcS	1	2
	Clamping Force KG	65000	65000
	Mold Route mm	320	320
	Stretching Rod Route mm	460	460
	Bottom Mold Route mm	50	50
	Bottle Spacing mm	300	300
	Bottle Preform Number pcS	80	78
Products Parameter	Max Volume ml	20000	20000
	Max Bottle Boby Height mm	460	460
	Max Bottle Body Diameter mm	230	230
	Max Bottle Preform Height mm	240	240
	Max Bottle Mouth Diameter mm	65	65
Theoretical output	Capacity B/H	300-500	1000-1300
Electrical Parameter	Heating Oven Quantity PCS	4*4	4*4
	Heating Lamp Quantity PCS	13	13
	Heating Configuration Power kW	72	72
	Total Power Capacity kW	80	80
	Voltage V	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure MPA	0.7-0.9	0.7-0.9
	Blowing Pressure MPA	2.5-3.0	2.5-3.0
	Air supply m³/min	5.0/30	8.0/30
	Total Power kW	55	88
Cooling Chiller Parameter	Temperature ℃	9-13	9-13
	Pressure MPA	0.4	0.4
	Rated Power HP	5	5
Dimension	Host Machine Size MM	400018002200	500018002200
Dimension	Weight T	4.5	5.5

Technical Parameters		YDBA-0.6L-4	YDBA-2L-4
Host Machine Parameter	Cavity pcs	4	4
	Clamping Force KG	48000	48000
	Mold Route mm	125	125
	Stretching Rod Route mm	330	330
	Bottom Mold Route mm	40/70	50
	Bottie Spacing mm	76.2	114.3(140)
	Bottie Preform Number pcs	78	78
Products Parameter	Max Volume ml	600	1500
	Max Bottle Boby Height mm	330	330
	Max Bottle Body Diameter mm	70	105
	Max Bottle Preform Height mm	140	140
	Max Bottle Mouth Diameter mm	38	38
Theoretical output	Capacity B/H	4000-6000	4000-6000
Electrical Parameter	Heating Qven Quantity PCS	5*5	5*5
	Heating LampQuantity PCS	5*9	5*9
	Heating Configuration Power kW	60	60
	Total Power Capacity kW	72	72
	Voltage V	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure MPA	0.7-0.9	0.7-0.9
	Blowing Pressure MPA	2.5-3.0	2.5-3.0
	Air supply m³/min	5.0/30	5.0/30
	Total Power kW	55	55
Cooling Chiller Parameter	Temperature ℃	9-13	9-13
	Pressure MPA	0.4	0.4
	Rated Power HP	5	5
Dimension	Host Machine Size MM	480022002200	480022002200
Dimension	Weight T	3.5	4.2

Technical Parameters		YDBA-5L-1	YDBA-5L-2	YDBA-10L-1	YDBA-10L-2
Host Machine Parameter	Cavity	1	2	1	2
	Clamping Force KG	65000	65000	65000	65000
	Mold Route mm	260	260	300	300
	Stretching Rod Route mm	350	350	440	440
	Bottom Mold Route mm	50	50	50	50
	Bottle Spacing mm	200	220	260	260
	Bottle Preform Number pcs	30	78	52	78
Products Parameter	Max Volume ml	6000	6000	12000	12000
	Max Bottle Boby Height mm	350	350	420	420
	Max Bottle Body Diameter mm	180	180	200	200
	Max Bottle Preform Height mm	200	200	240	200
	Max Bottle Mouth Diameter mm	45	45	55	55
Theoretical output	Capacity B/H	400-600	1200-1500	500-700	1000-1300
Electrical Parameter	Heating Oven Quantity PCS	4*4	4*4	4*4	4*4
	Heating Lamp Quantity PCS	10	10	13	13
	Heating Configuration Power kW	72	72	72	72
	Total Power Capacity kW	82	82	80	80
	Voltage V	380V50HZ	380V50HZ	380V50HZ	380V50HZ
Air Source Parameter	Working Pressure MPA	0.7-0.9	0.7-0.9	0.7-0.9	0.7-0.9
	Blowing Pressure MPA	2.5-3.0	2.5-3.0	2.5-3.0	2.5-3.0
	Air supply m³/min	4.8/30	6.0/30	5.0/30	8.0/30
	Total Power kW	45	66	55	88
Cooling Chiller Parameter	Temperature ℃	9-13	9-13	9-13	9-13
	Pressure MPA	0.4	0.4	0.4	0.4
	Rated Power HP	5	5	5	5
Dimension	Host Machine Size MM	400018002200	480018002200	400018002200	500018002200
Dimension	Weight T	4.5	5.0	4.5	5.5

Key Features and Benefits

Servo Motor Energy Saving

Equipped with advanced servo motors, this machine significantly reduces energy consumption. The servo system only uses power when needed, unlike traditional machines, leading to lower electricity costs and a more environmentally friendly operation.

Wide Production Range

This machine offers great versatility. It can efficiently produce bottles from a small 200ml size up to a large 20L capacity. This flexibility allows you to serve different market needs with just one machine.

Optimized for Medium Output

Specifically designed for small to medium production volumes, it balances speed with practicality. For a standard 500ml bottle, it achieves a stable output of 2,000 to 6,000 bottles per hour, meeting the demands of many regional brands and contract fillers.

Excellent Bottle Quality

It ensures high-quality blowing with even wall thickness distribution. This results in strong, lightweight bottles with brilliant clarity that perfectly showcase your product.

Quick Mold Changeover

The user-friendly design allows for fast and easy mold changes. This minimizes downtime when switching between different bottle designs, boosting your overall production efficiency.

Machine Display

9Z7A9438 拷贝

9Z7A6228 拷贝

9Z7A6267 拷贝

Technical parameters

参数

参数1

参数2

Preforms and Bottles

74412-6764549副本拷贝

201409251003580 拷贝

bottled-water22 拷贝

Primary Applications

This machine is ideal for creating a variety of PET bottles used in many industries:

● Beverages: Producing bottles for purified water, carbonated soft drinks (CSD), juices, and ready-to-drink teas.

● Food & Cooking Oil: Manufacturing clean and safe containers for edible oil, sauces, and syrups.

● Household & Chemicals: Making bottles for liquid detergents, cleaning agents, and other household chemicals.

● Pharmaceutical & Cosmetic: Blowing bottles for mouthwash, shampoo, and other personal care products.

FAQ

How much do your machines cost?

Since our machines are custom-configured to match each client's specific output, container type, and factory requirements, pricing is not fixed. We offer a wide range of models across different output capacities—from entry-level to high-speed lines—which allows us to provide options that align with varying budget and production needs. To get a detailed and tailored quote, please contact us with your project details—we'll prepare a solution that fits both your technical goals and investment plan.

Are the key components in your blowing and filling machine from internationally recognized brands?

We understand your concern for reliability and longevity. Ou blowing-filling-capping combi machine are configured with high-quality, branded core components (such as PLCs, pneumatics, and drives) from reputable global suppliers. This ensures superior performance, stability, and easier access to spare parts, directly contributing to lower long-term operational risks.

How do you ensure low maintenance costs and high uptime in remote markets?

We achieve low maintenance costs through robust machine design, the use of durable branded components, and comprehensive remote support. We provide extensive operator training and detailed documentation. For key markets like Africa, the Middle East, and Central Asia, we maintain strategic spare part inventories and offer fast-response technical support to minimize downtime.

Can your 3 in 1 blow-fill-cap machine achieve a stable output of 20,000 bottles per hour (BPH) or more?

Absolutely. Our Blow-Fill-Cap Combi Block machine and complete bottling lines are specifically engineered for high-speed, continuous production. With proven designs and precision engineering, for 500ml bottle as a example, the stable output is 20,000 to 48,000 BPH while maintaining consistent quality, making them the ideal solution for medium and large-scale water and beverage plants.

Our factory area is 200 sqm.What is the footprint of your complete line?

Our Blow-Fill-Cap Combi Block is a major space-saving advantage, integrating three processes into one compact unit. The area of our entire production line ranges from 50 to 500 square meters. Our engineers will design a space-efficient production floor plan that fully utilizes your 200 sqm facility for optimal workflow.

What kind of training and after-sales support do you provide?

We provide complete on-site installation, commissioning, and hands-on operation training for your technicians. Our after-sales support includes a 24/7 remote assistance hotline, readily available spare parts lists, and scheduled maintenance guidance. Our goal is to make your team self-sufficient and ensure your line runs smoothly for years.

Do you have proven experience in our target region (e.g., Africa, Southeast Asia)?

We have a strong track record across your target markets, including Africa, the Middle East, Southeast Asia, and the Belt and Road regions. We understand the local challenges, such as climate, water quality, and supply chains. Our machines are built to perform reliably in these conditions, and we have local partners or service points to ensure dedicated support.

Are your Blow-Fill-Cap Combi Block Machine suitable for producing both bottled water and carbonated beverages?

Yes. Our filling technology and line configurations are versatile. We offer specific models and adjustments to expertly handle both non-carbonated (water) and carbonated beverages. This allows you to diversify your product portfolio with a single, efficient production line, maximizing your market flexibility.
