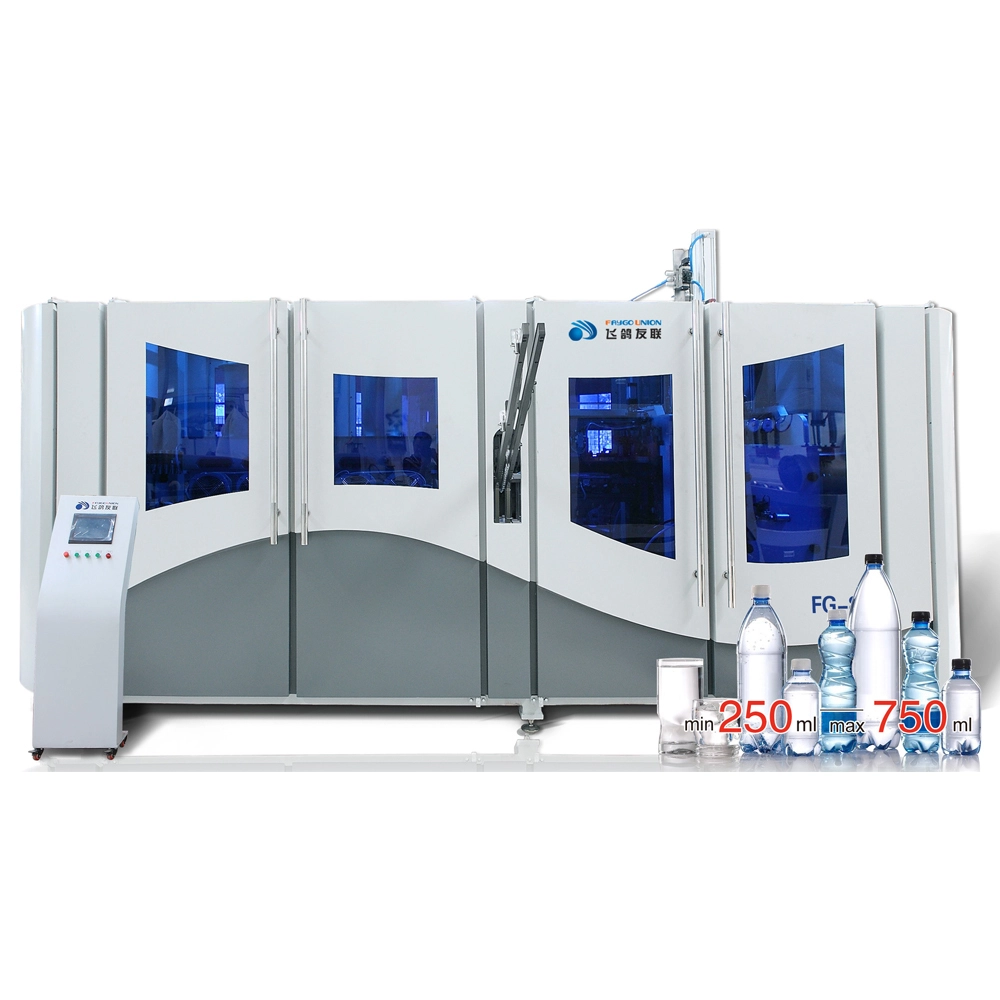

Automatic Linear High-speed PET Bottle Blowing Machine 1

Automatic Linear High-speed PET Bottle Blowing Machine 2

Automatic Linear High-speed PET Bottle Blowing Machine 3

Automatic Linear High-speed PET Bottle Blowing Machine 4

Automatic Linear High-speed PET Bottle Blowing Machine 5

Automatic Linear High-speed PET Bottle Blowing Machine 6

Automatic Linear High-speed PET Bottle Blowing Machine

Our Linear High-Speed PET Bottle Blowing Machine is designed for efficient and reliable production of high-quality PET bottles. It transforms PET preforms into finished bottles ready for filling. With its advanced technology, this machine is perfect for bottling plants that require consistent, medium to high-volume output.

High Production – 7,000~16,000 bottles/hour.
Energy Efficiency – The full servo motor saves energy by more than 30%.
Easy to change mold – supports various bottle types (100ml~20L)
Multiple models available – FG4(4-cavity), FG6(6-cavity), FG8(8-cavity）

Inquiry

Write a Review

Main Technical Parameter

Model	FG4	FGX4	FG6	FGX6	FG8	FGX8
Cavity number (cav)	4	4	6	6	8	8
Operation speed (BPH)	6500-8000	8000-9000	9000-10000	9000-13000	12000-13000	15000-16000
Max volume (ml)	2000	2000	2000	2000	750	750
Suitable inner bottle neck (mm)	20-25	20-25	20-25	20-38	20-25	20-25
operation power (kw)	25	28	30	35	45	45
Total installation power (kw)	51	58	51	97	97	97
Air consumption (min/30bar)	4	4	6	6.5	8	8
Machine dimension(LWH) (m)	3.8X1.3X2.3	3.8X1.3X2.3	4.6X1.3X2.3	5.2X1.3X2.5	5.2X1.3X2.5	5.2X1.3X2.5
Machine weight (Kg)	3500	3800	4500	5500	5000	5000

Key Features And Benefits

All-Servo Electric Drive for Energy Savings

This machine uses a fully servo-driven motor system. It is incredibly energy-efficient. Our unique variable-pitch transmission design reduces energy consumption by over 40% compared to traditional blowers. This significantly lowers your operating costs and supports your sustainability goals.

Linear Design for Stable High-Speed Production

The linear layout allows for a smooth and continuous workflow. Preforms move in a straight line through each station: heating, blowing, and ejection. This simple and robust design ensures high-speed operation with minimal vibration and maximum stability.

Optimized for Medium-High Output

This machine delivers powerful production capacity. It is capable of producing up to 16,000 bottles per hour (for a 500ml bottle). This makes it an ideal solution for production lines that need a strong and dependable output rate.

Wide Bottle Size Versatility

The machine offers great flexibility. It can produce a wide range of bottle sizes, from 250ml to 2.0 liters. Quick mold changeovers allow you to switch between different bottle designs and capacities with minimal downtime.

Precision and Consistent Quality

Each servo motor ensures precise control over the entire process. This results in excellent bottle quality with consistent wall thickness, high clarity, and superior strength for every single bottle.

Machine Display

3 拷贝 (2)

1 拷贝 (2)

2 拷贝 (2)

4 拷贝 (4)

细节3

5 拷贝 (4)

Preforms and Bottles

3 拷贝 (2)

1 拷贝 (2)

2 拷贝 (2)

4 拷贝 (4)

5 拷贝 (4)

瓶子3

Primary Applications

This linear blow molder is ideal for creating clear and strong PET bottles for various industries, including:

● Bottled Water: Producing still and purified water bottles.

● Carbonated Soft Drinks (CSD): Manufacturing bottles that can withstand the pressure of carbonated beverages.

● Edible Oils: Creating safe and clean containers for cooking oil.

● Ready-to-Drink Teas and Juices: Producing bottles for various non-carbonated drinks.
