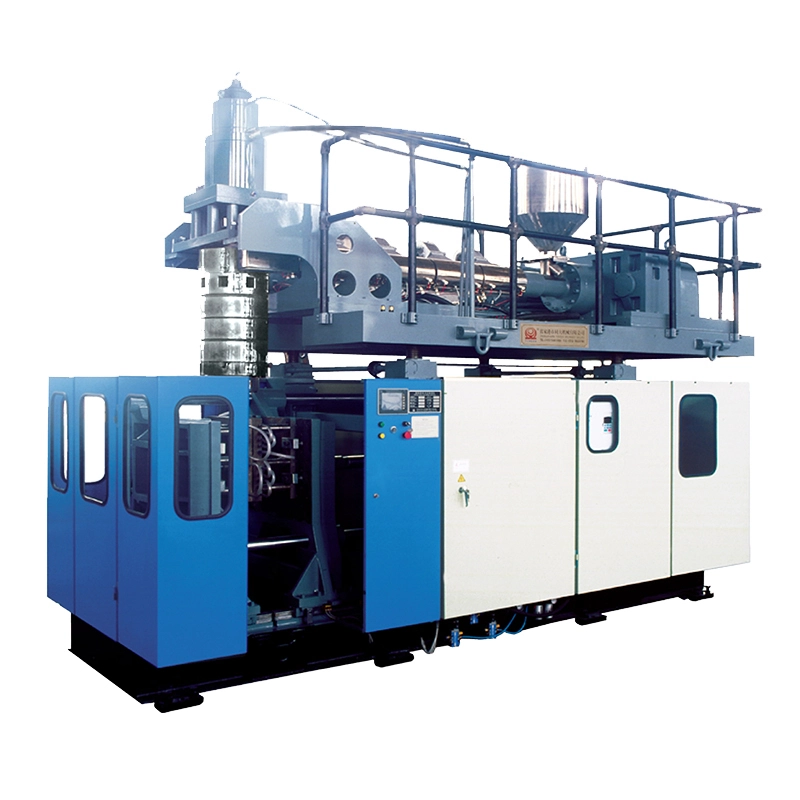

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 1

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 2

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 3

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 4

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 5

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers 6

HDPE Blow Molding Machine: For Durable and Versatile Plastic Containers

This HDPE Blow Molding Machine is engineered to produce strong, lightweight, and reusable plastic containers efficiently. It is the ideal solution for manufacturers needing high-volume production of hollow HDPE products. The machine uses the extrusion blow molding process to create seamless bottles and containers with consistent quality.

Key Features and Benefits:

● Robust Clamping System

● Advanced Parison Control

● User-Friendly PLC Control

● High Efficiency and Low Energy Consumption

● Reliable Performance

Inquiry

Write a Review

Main Technical Parameter

Name	Units			Name	Units
Max.product volume	L	30	30	Max.sze of mold	MM	600×660	600×660
Dry cycle	PC/H	600	400×2	Template size	MM	600×655	600×655
Screw diameter	MM	100	100	Mold stroke	MM	420-920	420-920
Screw L/D ratio	LD	25	25	Max.die diameter	MM	250	250
Screw drive power	KW	55	55	Blowing pressure	MPA	0.8	0.8
Screw heating capacity	KW	15	15	Air volume	M³MIN	1.2	1.5
No.of heating zone	ZONE	4	4	Cooling water pressure	MPA	0.3	0.3
Output of HDPE	KG/H	200	200	Water consumption	L/MIN	120	120
Oil pump drive power	KW	15	15	Sze of machine	LxW×H	5.0×3.0×3.2	5.0×3.0×3.2

Key Features And Benefits

Robust Clamping System

A powerful clamping unit ensures the mold remains securely closed during the blowing process. This guarantees precise container shape and a clean, flash-free finish on every product.

High Efficiency and Low Energy Consumption

Designed for continuous operation, our machine offers fast cycle times to maximize your output. Its energy-saving features also help to reduce your overall production costs.

Reliable Performance

Built with high-quality components, this machine ensures stable, long-lasting performance with minimal downtime, providing a great return on your investment.

Advanced Parison Control

The machine provides excellent control over the parison (the hot plastic tube). This allows for even wall thickness distribution, resulting in stronger containers that use material efficiently, saving you costs.

User-Friendly PLC Control

An easy-to-use PLC (Programmable Logic Controller) with a touchscreen interface allows operators to set and monitor all parameters. This ensures simple operation, quick changeovers between different container designs, and consistent repeatability.

Product display

9Z7A0293 拷贝

9Z7A0271 拷贝

9Z7A0257 拷贝

9Z7A0188 拷贝

853883211891622477 拷贝

9Z7A0397 拷贝

IMG_2092 拷贝

IMG_2057 拷贝

Primary Applications

This machine is perfect for creating a wide range of HDPE containers used in many industries:

● Household & Industrial Chemicals: Bottles for detergents, bleach, cleaning agents, and lubricant oils.

● Personal Care & Cosmetics: Containers for shampoo, conditioner, lotion, and liquid soap.

● Automotive: Producing items like antifreeze and coolant bottles.

● Food & Dairy: Making bottles for milk, juice, and other non-carbonated drinks.

● General Packaging: Manufacturing jerry cans, storage bins, and drums for various industrial and consumer uses.
