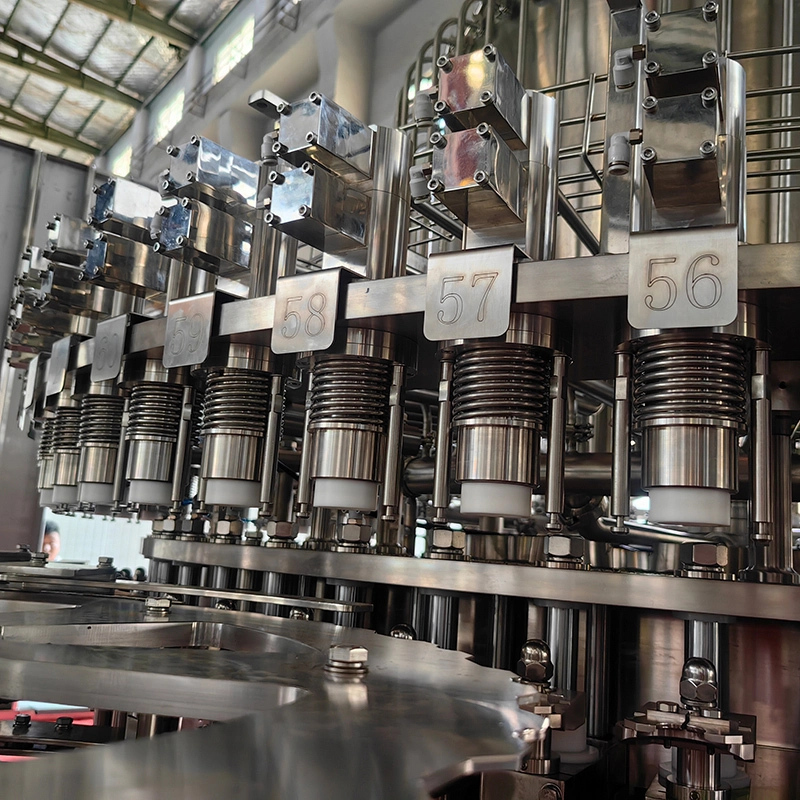

Faygo Union Rotary Blowing-Filling-Capping Machine: Integrated Efficiency for Modern Bottling

The Rotary Blowing-Filling-Capping Machine integrates the blowing, filling, and capping processes into a single, high-efficiency combiblock system. Designed for high-volume production of PET bottles for liquid products such as water, beverages, juices, and oils. The maximum production capacity can reach 48,000 bottles per hour.this machine exemplifies innovation, hygiene, and operational intelligence, making it an ideal solution for modern beverage plants aiming to optimize their production lines.

Key Features and Benefits:
● High-Speed Integrated Production
● Advanced Energy-Saving Systems
● Precision Engineering and Hygiene
● Smart Operation and Flexibility

Inquiry

Write a Review

Main Technical Parameter

Size	*1100036003200mm*
Place of Origin	china
Minimum order quantity	1
Color	Customizable
Packing	wooden pallets
Delivery time	45days
Model	CGX24-80-30

Technical Parameters		CGX6-32-10	CGX8-36-12	CGX10-40-15	CGX12-45-18	CGX14-50-18
Products Parameter	Max Capacity ml	250-2000/2500	250-2000/2500	250-2000/2500	250-2000/2500	250-2000/2500
	Max Bottle Boby Height mm	340	340	340	340	340
	Max Bottle Body Diametermm	100(Quick Change)/115	100(Quick Change)/115	100(Quick Change)/115	100(Quick Change)/115	100(Quick Change)/115
	Max Bottle Preform Height mm	150	150	150	150	150
	Support ring Diameter mm	36	36	36	36	36
Theoretical output	Capacity(500ml) B/H	14000	19000	24000	28800	31500
Host Machine Parameter	Installed Capacity KW	170	190	210	230	250
	Operating Power KW	60	65	75	90	105
	Air Capacity Consumption m²/min	4.8	6.2	7.8	8.8	10.2
Dimension	Host Machine Size MM	1100036003200	1200038003200	1200038003200	1300046003200	1300046003200
Dimension	Weight T	16	18	20	22	25

Technical Parameters		CGX16-60-20	CGX18-72-24	CGX20-72-24	CGX24-80-30
Products Parameter	Max Capacity ml	250-2000/2500	250-2000/2500	250-2000/2500	250-2000/2500
	Max Bottle Boby Height mm	340	340	340	340
	Max Bottle Body Diametermm	100(Quick Change)/115	100(Quick Change)/115	100(Quick Change)/115	100(Quick Change)/115
	Max Bottle Preform Height mm	150	150	150	150
	Support ring Diameter mm	36	36	36	36
Theoretical output	Capacity(500ml) B/H	36000	40000	43000	48000
Host Machine Parameter	Installed Capacity KW	270	290	315	320
	Operating Power KW	120	135	165	170
	Air Capacity Consumption m²/min	10.9	12.1	13.3	15.6
Dimension	Host Machine Size MM	1470052003200	1470052003200	1500053003200	1500053003200
Dimension	Weight T	26	27	28	29

Product Introduction

The Faygo Union Linear Blowing-Filling-Capping Machine represents a significant advancement in integrated bottling technology. This combiblock system seamlessly combines blowing, filling, and capping processes into a single, streamlined unit, designed to enhance production efficiency, ensure product hygiene, and reduce operational costs. Ideal for small to medium-scale production plants, this machine is engineered to handle a variety of liquid products, including mineral water, beverages, juices, and oils

Key Features and Technological Advantages

High-Speed Integrated Production

This machine combines three critical steps—blowing, filling, and capping—into one continuous, automated operation. This integrated approach significantly boosts productivity, with models like the CGX24-80-30 achieving impressive output speeds of up to 48,000 bottles per hour (BPH).

Smart Operation and Flexibility

The user-friendly interface, featuring a 10-inch touchscreen with multi-language support, allows operators to monitor over 20 sensor parameters in real-time. Its modular design facilitates quick bottle changeovers, enabling the line to switch between different bottle specifications (ranging from 0.25 to 2 liters) in as little as half an hour. This makes it perfectly suited for production lines that handle multiple SKUs.

Advanced Energy-Saving Systems

Faygo Union has incorporated several eco-friendly technologies to reduce operational costs and environmental impact. The machine features an innovative air recovery system that recycles exhaust gas, pressurizes it, and reuses it for pre-blowing, effectively reducing overall compressed air consumption. It is also equipped with an infrared heating furnace paired with ceramic plate energy storage technology and an optimized water cooling system for superior heat management, contributing to lower energy expenditure.

Precision Engineering and Hygiene

To ensure the highest product quality, the machine utilizes a servo control system for precise positioning and displacement of the stretch rods. The imported magnesium-aluminum molds are lightweight and crafted through multi-axis precision machining for high accuracy. Furthermore, it is built with full stainless steel contact parts and is complemented by an ion air dust removal system and a CIP (Cleaning-In-Place) system, guaranteeing a sterile production environment suitable for food and beverage standards. The use of robotic hands for non-contact bottle handling further prevents secondary pollution.

Machine Display

6 (6)

吹灌旋

2 (9)

Primary Applications

The Faygo Union Rotary Blowing-Filling-Capping Machine is engineered for a wide range of applications in the liquid packaging industry. It is perfectly suited for producing:

● Water: Still and purified water in various bottle sizes.

● Beverages: Non-carbonated drinks such as juices and teas.

● Edible Oils: Cooking and salad oils.

● Liquid Food Products: Other non-gas liquids requiring hygienic packaging.

FAQ

How much do your machines cost?

Since our machines are custom-configured to match each client's specific output, container type, and factory requirements, pricing is not fixed. We offer a wide range of models across different output capacities—from entry-level to high-speed lines—which allows us to provide options that align with varying budget and production needs. To get a detailed and tailored quote, please contact us with your project details—we'll prepare a solution that fits both your technical goals and investment plan.

Are the key components in your blowing and filling machine from internationally recognized brands?

We understand your concern for reliability and longevity. Ou blowing-filling-capping combi machine are configured with high-quality, branded core components (such as PLCs, pneumatics, and drives) from reputable global suppliers. This ensures superior performance, stability, and easier access to spare parts, directly contributing to lower long-term operational risks.

How do you ensure low maintenance costs and high uptime in remote markets?

We achieve low maintenance costs through robust machine design, the use of durable branded components, and comprehensive remote support. We provide extensive operator training and detailed documentation. For key markets like Africa, the Middle East, and Central Asia, we maintain strategic spare part inventories and offer fast-response technical support to minimize downtime.

Can your 3 in 1 blow-fill-cap machine achieve a stable output of 20,000 bottles per hour (BPH) or more?

Absolutely. Our Blow-Fill-Cap Combi Block machine and complete bottling lines are specifically engineered for high-speed, continuous production. With proven designs and precision engineering, for 500ml bottle as a example, the stable output is 20,000 to 48,000 BPH while maintaining consistent quality, making them the ideal solution for medium and large-scale water and beverage plants.

Our factory area is 200 sqm.What is the footprint of your complete line?

Our Blow-Fill-Cap Combi Block is a major space-saving advantage, integrating three processes into one compact unit. The area of our entire production line ranges from 50 to 500 square meters. Our engineers will design a space-efficient production floor plan that fully utilizes your 200 sqm facility for optimal workflow.

What kind of training and after-sales support do you provide?

We provide complete on-site installation, commissioning, and hands-on operation training for your technicians. Our after-sales support includes a 24/7 remote assistance hotline, readily available spare parts lists, and scheduled maintenance guidance. Our goal is to make your team self-sufficient and ensure your line runs smoothly for years.

Do you have proven experience in our target region (e.g., Africa, Southeast Asia)?

We have a strong track record across your target markets, including Africa, the Middle East, Southeast Asia, and the Belt and Road regions. We understand the local challenges, such as climate, water quality, and supply chains. Our machines are built to perform reliably in these conditions, and we have local partners or service points to ensure dedicated support.

Are your Blow-Fill-Cap Combi Block Machine suitable for producing both bottled water and carbonated beverages?

Yes. Our filling technology and line configurations are versatile. We offer specific models and adjustments to expertly handle both non-carbonated (water) and carbonated beverages. This allows you to diversify your product portfolio with a single, efficient production line, maximizing your market flexibility.
